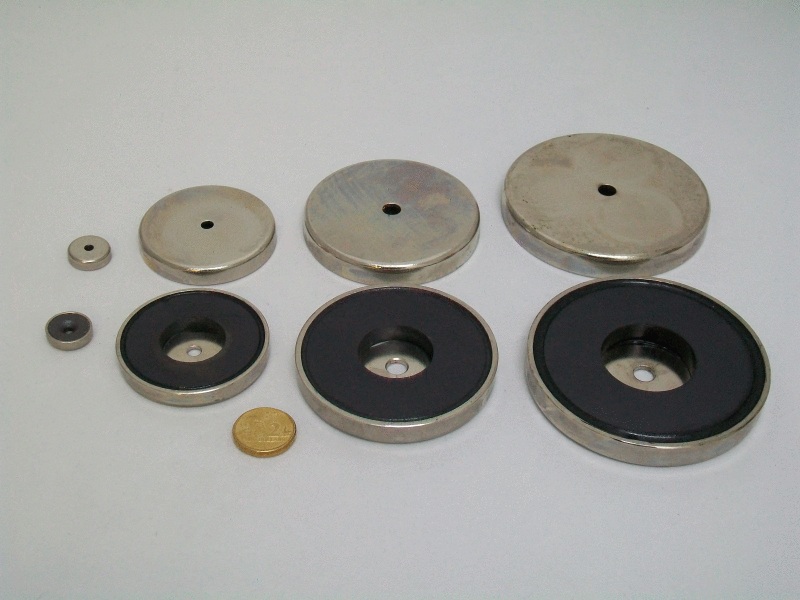

Ferrite Ceramic Pot Magnets with Pressed Casing
Suitable for General Purpose Holding Applications. Very Economical.
This range has a pressed steel casing and a through hole for fixing from the front.
| Model No. | Diameter (mm) |
Thickness (mm) |
Fixing - Through Hole (no thread) (mm) |
Pull Strength (kg) |
| FP 1604 | 16 | 4.5 | Countersunk hole 3.5mm / 6.6mm | 1 |
|
FP 2507 *No Photo |
25 | 7 | Countersunk hole 5.5mm / 10.4mm | 2 |
| FP 5208 | 52 | 8 | 4.9 | 10 |
| FP 6710 | 67 | 10 | 7.1 | 25 |
| FP 8211 | 82 | 11 | 7.1 | 40 |
