Centre-Flow Magnets (CFM)

Centre-Flow Magnets remove ferrous fines as well as larger pieces of ferrous tramp from dry particulates as they travel through dilute-phase pneumatic conveying lines up to 15psi. They offer maximum contact with the product, where some restriction of the product flow is acceptable.

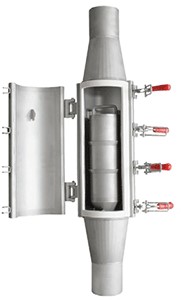

A conical shaped magnet is suspended inside the housing for optimum contact with the product and is removable for cleaning. Can be installed in any orientation and flow direction, although best performance is achieved in a vertical position with product flow directed upwards. Features powerful rare earth magnets as standard.
